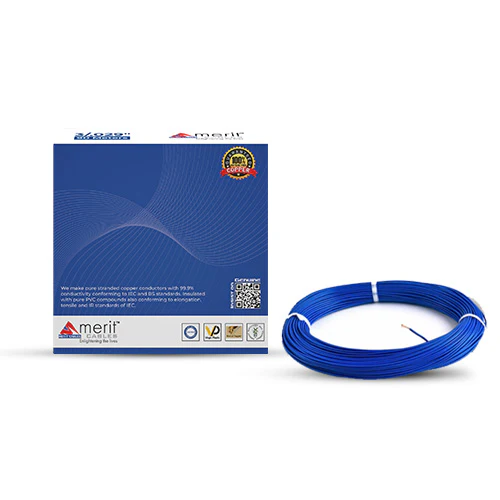

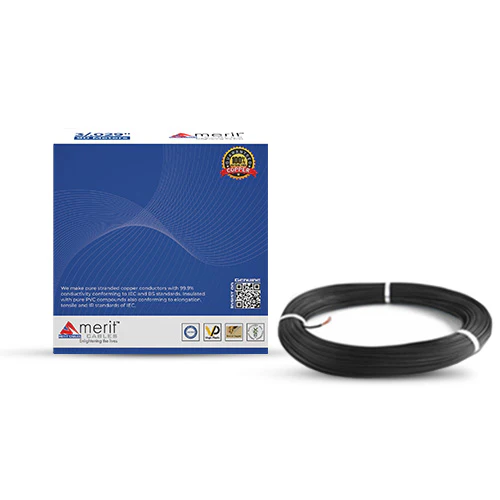

1 mm² or (40/0076″) Single Core Flexible Copper Cable
1 mm² Most Commonly used in panel wiring.
| Weight | 1.8 kg |
|---|---|
| Select Color | RED, BLACK, YELLOW, BLUE,GREY,BROWN,YELLOW & GREEN |
| Length | 90 meters |
| No. of Strands | 40 |
| Strand Diameter | .007 Inch |
| Conductor Type | Copper |
| Insulation Type | Poly Vinyl Chloride (PVC) |
| Standard | BSS-6004 Equivalent (23/.0076 )BSS-2004 in Pakistan |
| Temperature Rating | -20C˚ to 70C˚ |
| Dc Resistance | 8.06 ohm/km |
| Colors Available | RED, BLACK, YELLOW,BLUE,GREY,BROWN,YELLOW & GREEN |
| Voltage Rating | 250/450V |
| Ampere Rating | 11 Amps |
